Extra protection against mold and mildew
- Suitable for all interior applications; including walls and ceilings.
- Mold and moisture resistant, use anywhere moisture is a concern.
- Features GridMarX® guide marks on the board to allow for faster and more accurate installation.

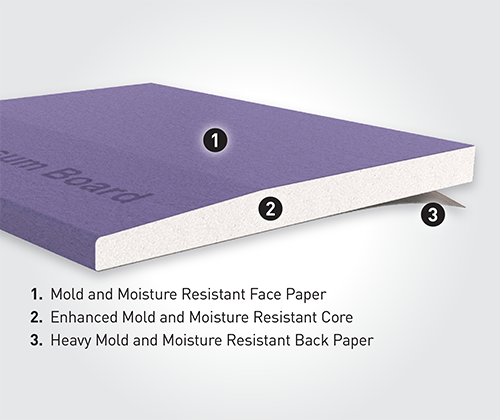

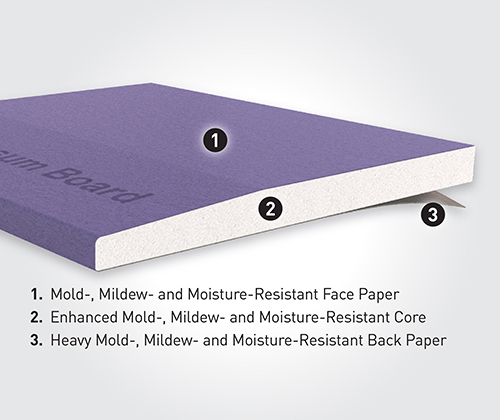

Gold Bond® XP® Gypsum Board was designed to provide extra protection against mold and mildew compared to standard gypsum board products. The face paper is folded around the long edges to reinforce and protect the core, and the ends are square-cut and finished smooth. Long edges of the panels are tapered.
With PURPLE® paper on the face side and heavy, mold- and moisture-resistant, 100% recycled gray paper on the back side, you can count on XP Gypsum Board to help protect your projects from mold.
GridMarX are printed on the face paper surface to help installers instantly identify stud locations and make accurate cuts without having to pencil in or snap chalk lines.
For an approved component in UL fire-rated designs use Gold Bond® XP® Fire-Shield® Gypsum Board (5/8” Type X), 1/2” Gold Bond® XP® Fire-Shield C™ Gypsum Board (1/2” Type C), or 5/8” Gold Bond® XP® Fire-Shield C™ Gypsum Board (5/8” Type C).
APPLICATIONS:
- Use it in both wood- and steel-framed construction for interior wall and ceiling applications.
- Use it as a tile backer in dry areas or areas with limited moisture, such as toilet or sink areas, and wall and ceiling areas above tile in tubs and showers.
- Approved for use in exterior soffit applications
ADVANTAGES:
INHIBITS MOLD GROWTH
- Helps inhibit mold growth with the highest possible score on mold tests (ASTM D3273 and ASTM G21).
- Features SPORGARD® technology with extra mold-inhibiting properties.
- Has less than 5% water absorption per ASTM C473.
RESISTS MOISTURE BETTER
- Fights the effects of moisture before damage can occur.
- Dimensionally stable product with negligible expansion and contraction under normal atmospheric conditions.
INSTALLS FAST AND EASY
- Features GridMarX guide marks on the board to allow for faster and more accurate installation.
- Scores and snaps easily, with no special handling requirements.
- Ends are square cut and finished smooth.
- Edges are tapered, allowing joints to be reinforced.
- Reinforces the core with face paper folded around the long edges.
FIRE-RESISTANT MATERIAL
- UL Classified for fire resistance and surface burning characteristics.
LOW-EMITTING MATERIALS
- Qualifies as a low-VOC emitting material by meeting California Specification 01350.
- Achieves UL GREENGUARD Gold Certification for low chemical emissions into indoor air during product usage. For more information, visit: ul.com/gg.
Video: Gold Bond® XP® Gypsum Board
Video: Step-By-Step Guide to Gold Bond® XP® Wall Board Installation
Specifications
Products that suit any project criteria
Product Details
Performance:
Mold & Moisture Resistant, Drywall Panels, Factory Built Housing
Edge(s):
Tapered
Thickness(es):
1/2"
Width(s):
48"
