Drywall Panels

Gold Bond® Kal-Kore® Fire-Shield® Plaster Base

A tapered edge gypsum plaster base with a 100% recycled absorptive face paper.

Resources

3-Part Guide Specs

Literature

SDS

Submittals

Tapered edge gypsum plaster base

Greater thickness provides increased resistance to fire and reduced sound transmission
  • Suitable for walls and ceilings in fire-rated construction
  • Provides a smooth durable base for plaster.
  • Type X core is fire resistant and an approved component in UL fire-rated designs.

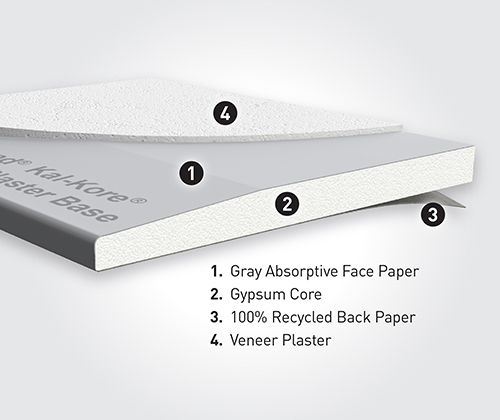

Gold Bond® Kal-Kore® Fire-Shield® Plaster Base is a tapered edge gypsum plaster base with a 100% recycled absorptive face paper surface designed to permit rapid trowel application of Kal-Kote® Basecoat, Uni-Kal®, and X-KALibur® veneer plasters as well as Gypsolite® Plaster. Use Kal-Kore Fire-Shield Plaster Base in specific fire-rated assemblies.

Kal-Kore Plaster Base and veneer plaster systems may be specified for virtually all types of partition and ceiling constructions, including wood or steel framing, furring and masonry. For both residential and commercial buildings, both two-coat and on-coat veneer plaster systems produce a wall more resistant to nail-pops.

GridMarX® are printed on the paper surface to help installers instantly identify stud locations and make accurate cuts without having to pencil in or snap chalk lines.

For a plaster base not used in UL fire-rated designs, see Gold Bond® Kal-Kore® Plaster Base (3/8”, Regular Core), or Gold Bond® Kal-Kore® LITE Plaster Base (1/2“, Regular Core).

Check the Fire and Safety Information for a more complete explanation of how fire resistance ratings work.

APPLICATIONS:

  • For walls and ceilings in fire-rated construction where the framing members are spaced 24” o.c.

ADVANTAGES:

EXCELLENT BASE

  • Provides a strong bond for the application of Kal-Kote Basecoat, Uni-Kal, and X-KALibur veneer plasters as well as Gypsolite Plaster.
  • Provides the appearance and surface of conventional plaster at lower cost.
  • Provides a smooth and durable base for plaster.
  • High resistance to cracking, nail-popping, impact and abrasion failure.

PROVIDES ADDITIONAL FIRE RESISTANCE

  • Features a Type X core making it more fire resistant than ordinary wallboard.
  • Approved component in UL fire-rated designs.
  • UL Classified for fire-resistance, surface burning characteristics and non-combustibility.
  • The gypsum core will not support combustion or transmit temperatures greatly in excess of 212°F (100°C) until completely calcined, a slow process.

FAST AND EASY INSTALLATION

  • Features GridMarX guide marks on the board to allow for faster and more accurate installation.
  • Save time and money with MaX 12® and MaX 16® optimized fastener patterns to achieve 1-hour fire ratings using fewer fasteners.
  • Rapid installation reduces overall construction time.
  • Expansion and contraction under normal atmospheric changes are negligible.
  • Tapered edges allow for easily concealed joints using paper tape and joint compound.

LOW EMITTING MATERIALS

Video: Kal-Kore® Plaster Base and Veneer Plaster Installation

video-image

Specifications

Products that suit any project criteria

Product Details

Performance:

Drywall Panels

Edge(s):

Tapered

Thickness(es):

5/8"

Width(s):

48", 54"
