Gold Bond® Shaftliner XP®

Used to construct lightweight fire barriers for cavity shaftwalls (1-4 hr.), stairwells and area separation fire walls in multifamily housing.

Resources

3-Part Guide Specs

Literature

SDS

Submittals

Extra protection against mold and mildew

Lightweight, cost-efficient material

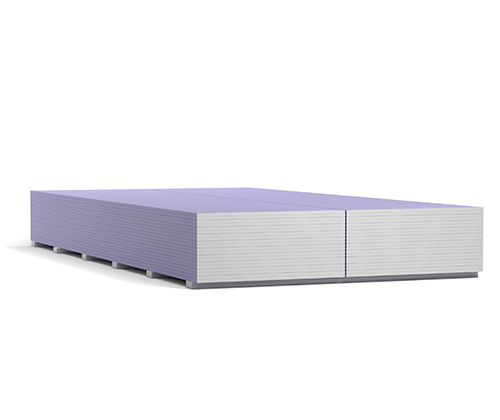

Gold Bond® Shaftliner XP® Gypsum Panels with Sporgard® consist of a fire-resistant Type X gypsum core encased in a heavy moisture/mold/mildew-resistant, 100% recycled PURPLE paper on the face and back sides.

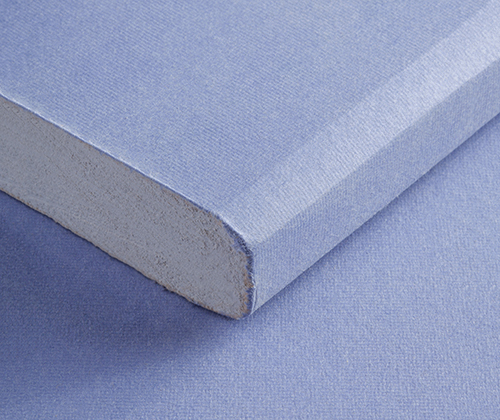

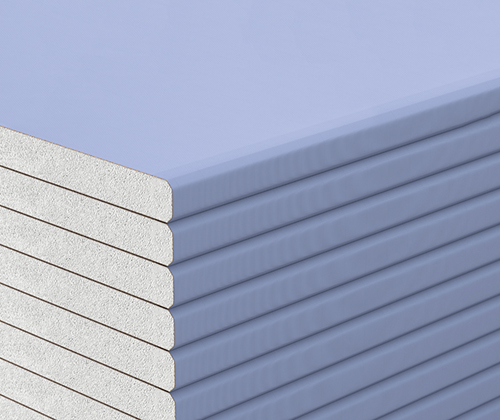

Shaftliner XP was designed to provide extra protection against mold and mildew. The face paper is folded around the long edges to reinforce and protect the core, and the ends are square-cut and finished smooth. Long edges of panels are beveled for ease of installation.

Check the Fire and Safety Information for a more complete explanation of how fire resistance ratings work.

Basic Uses

Shaftliner XP panels are designed to be used to construct lightweight fire barriers for cavity shaftwalls (1-4 hr.), stairwells, and area separation fire walls in multifamily housing. The panels are key components in the I-Stud, C-T Stud, and C-H Stud Cavity Shaftwall Systems and the H-Stud Area Separation Fire Wall Systems.

Advantages

  • Resists the growth of mold per ASTM G21 with a score of 0, the best possible score.
  • Resists the growth of mold per ASTM D3273 with a score of 10, the best possible score.
  • Lightweight, cost-efficient material.
  • Shaftliner XP is easily cut for quick installation.
  • Features GridMarX® guide marks on the board to allow for faster and more accurate installation.
  • UL Classified for fire resistance and surface burning characteristics.
  • The gypsum core will not support combustion or transmit temperatures greatly in excess of 212°F (100°C) until completely calcined, a slow process.
  • Shaftliner XP may be substituted for Gold Bond® Fire-Shield® Shaftliner in Cavity Shaftwall, Area Separation Fire Wall Systems, and solid laminated partitions.

Specifications

Products that suit any project criteria

Product Details

Performance:

Shaftliner, Mold & Moisture Resistant

Edge(s):

Beveled

Thickness(es):

1"

Width(s):

24"
