Single layer multi-hour assemblies
- Suitable for single-layer steel stud and cavity shaftwall systems.
- Type X core is fire resistant and an approved component in UL fire-rated designs.
- Reduced labor and material costs by using fewer layers (up to 10%).

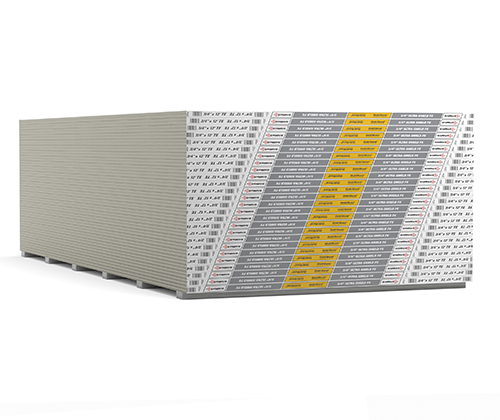

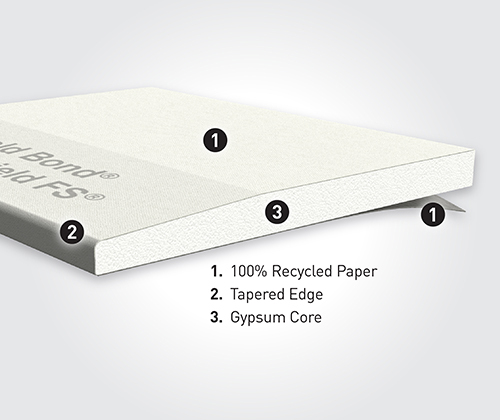

Gold Bond® Ultra-Shield FS® Gypsum Board is 3/4“ thick and consists of a fire-resistant gypsum core encased in heavy, natural-finish, 100% recycled paper on the face and back sides. The face paper is folded around the long edges to reinforce and protect the core, and the ends are square-cut and finished smooth.
Use it for 2- and 3-hour wall partitions, and 2-hour cavity shaftwall assemblies to reduce material and installation labor.
The Ultra-Shield core allows one layer of 3/4“ Ultra-Shield FS to replace two layers of 5/8“ Type X, or two layers of 3/4“ Ultra-Shield FS to replace three layers of 5/8“ Type X, in specific UL assemblies.

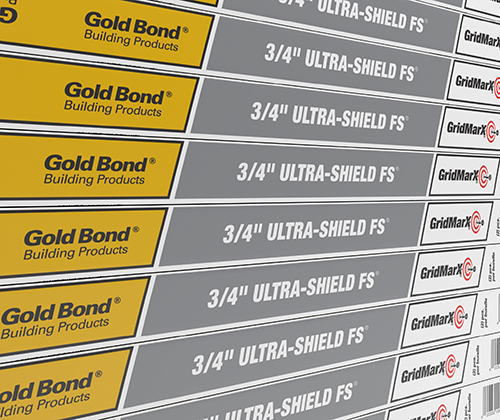

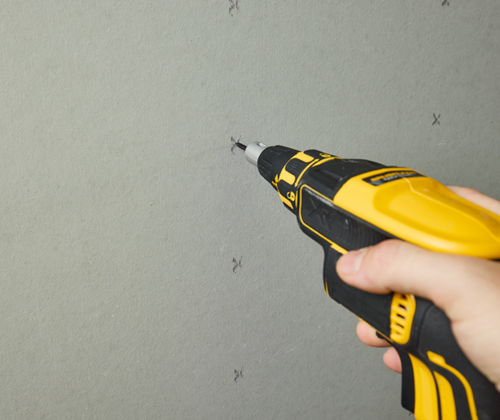

GridMarX® are printed on the paper surface to help installers instantly identify stud locations and make accurate cuts without having to pencil in or snap chalk lines.
For a 3/4” product that also provides mold and moisture resistance use Gold Bond® XP ® Ultra-Shield FS® Gypsum Board.
Check the Fire and Safety Information for a more complete explanation of how fire resistance ratings work.
APPLICATIONS:
- For single-layer - steel stud and cavity shaftwall systems. The greater thickness provides increased resistance to fire and reduced sound transmission vs. single layer of 5/8” Type X.
ADVANTAGES:
PROVIDES ADDITIONAL FIRE RESISTANCE
- Features a Type X core making it more fire resistant than ordinary wallboard.
- Approved component in UL fire-rated designs.
- UL classified for fire resistance, surface burning characteristics and non-combustibility.
- The gypsum core will not support combustion or transmit temperatures greatly in excess of 212°F (100°C) until completely calcined, a slow process.
FAST AND EASY TO INSTALL
- Reduces labor and material costs by using fewer layers (up to 10%).
- Features GridMarX guide marks on the board to allow for faster and more accurate installation.
- Save time and money with MaX 12® and MaX 16® optimized fastener patterns to achieve 1-hour fire ratings using fewer fasteners.
- Cost efficient material that readily accepts a wide range of decorative finishes.
- Cuts easily for quick installation, permitting painting or other decoration and the installation of metal or wood trim almost immediately.
- Dimensionally stable under changes in temperature and relative humidity and resists warping, rippling, buckling, and sagging.
LOW-EMITTING MATERIALS
- Qualifies as a low-emitting material per California Section 01350 and CDPH Standard Method, v1.2 For more information, visit: calrecycle.ca.gov
- Achieves UL GREENGUARD Gold Certification for low chemical emissions into indoor air during product usage. For more information, visit: ul.com/gg
Specifications
Products that suit any project criteria
Product Details
Performance:
Drywall Panels, Shaftliner
Edge(s):
Tapered
Thickness(es):
3/4"
Width(s):
48"
