DEXcell® Glass Mat Roof Board

This mold- and moisture-resistant gypsum panel is a substrate board, thermal barrier and/or coverboard for commercial roofing applications.

Resources

3-Part Guide Specs

Literature

Submittals

Submittal Builder

Ideally suited for mechanically attached roofing systems

Coated on the front, back and sides for easy handling

  • Recommended for mechanically attached roof systems.
  • Ideal coverboard or thermal barrier.
  • Scores and snaps easily.

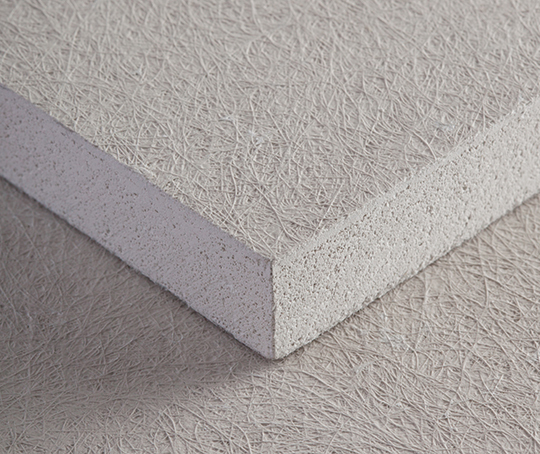

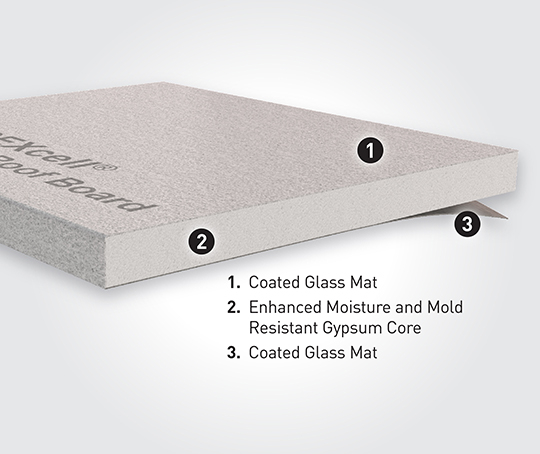

DEXcell® Glass Mat Roof Board has coated fiberglass facers and an enhanced mold-resistant gypsum core. This mold- and moisture-resistant gypsum panel is a substrate board, thermal barrier, and/or coverboard for commercial roofing applications. It scores and cuts easily, and is specially coated on the front, back, and sides for easy handling.

Use it for a wide variety of roofing systems, including mechanically attached and ballasted single-ply membranes, thermal barriers, and metal roofing.

Applications

  • Use DEXcell® Glass Mat Roof Board as a substrate board and for thermal protection in roofing assemblies. It provides increased fire safety and acoustical enhancement. It also serves as a substrate for a vapor retarder and/or continuous substrate for the application of roofing membranes. This board provides increased moisture, mold, and impact resistance.
  • Use it as a coverboard in roofing assemblies. DEXcell Glass Mat Roof Board protects and supports the roof membrane; provides increased fire, moisture, and mold resistance; and reduces the potential for penetration damage to the membrane.

Advantages

  • Scores and snaps easily.
  • Fiberglass mat on face and back has a special coating for easy handling.
  • Meets ASTM C1177.
  • Meets FM Class 1 and UL Class A fire ratings for roofing systems up to unlimited slope per UL 790/ULC S107.
  • Approved component in specific UL fire-rated designs.
  • Use it as part of a class A, B or C roof covering that has been tested in accordance UL 1256, ULC CAN-S126, or FM 4450. No additional thermal barrier is required as per IBC 2603.4.1.5.
  • Resists the growth of mold per ASTM D3273 with a score of 10, the best possible score.
  • High-density coverboard/thermal barrier.
  • 5/8 inch (15.9 mm) DEXcell Glass Mat Roof Board is UL Classified for use in numerous hourly rated UL assemblies, including UL "P" roof assemblies; refer to UL Certifications Directory: ul.com. Meets Type X per ASTM C1177.

DEXcell® Glass Mat Roof Board has achieved GREENGUARD Certification.

Specifications

Products that suit any project criteria.

Product Details

Performance:

Roofing

Edge(s):

Square

Thickness(es):

1/4", 1/2", 5/8"

Width(s):

48"
